Product Introduction

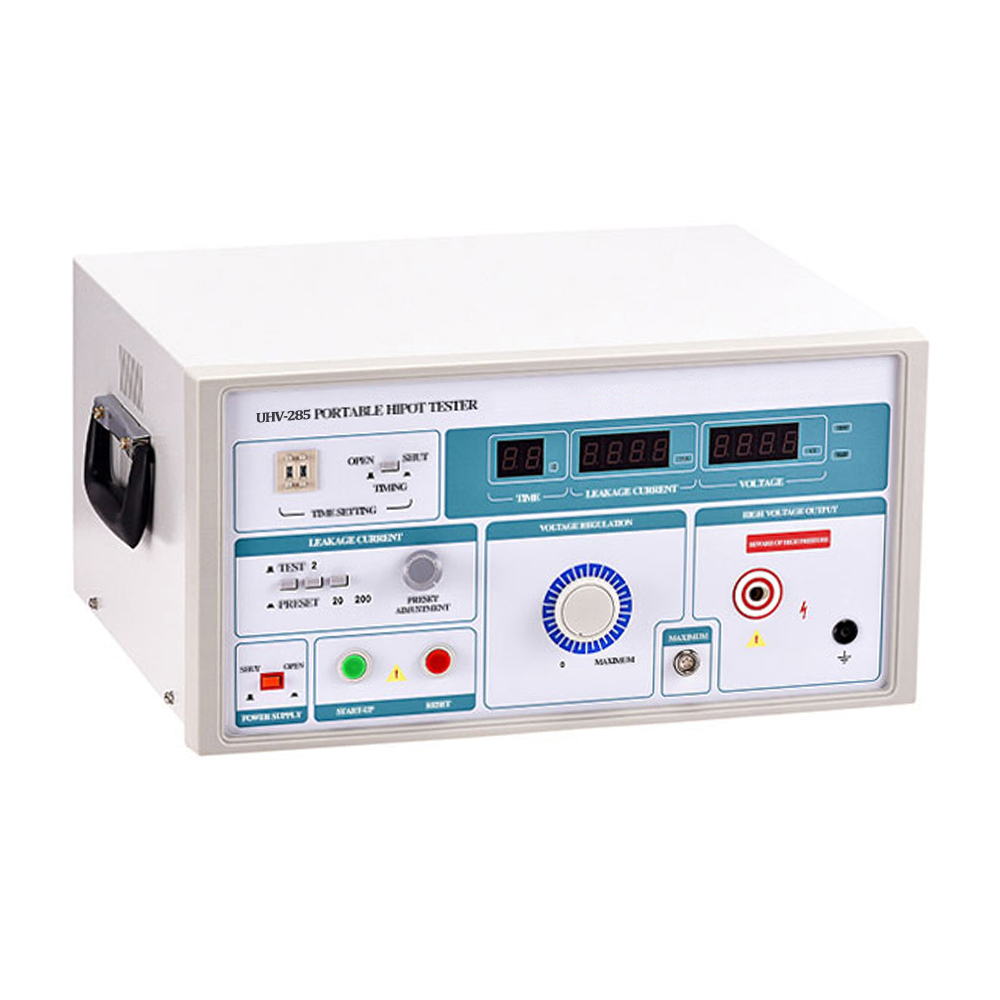

The portable withstand voltage tester is a specialized testing device used for inspecting the insulation withstand voltage performance of electrical equipment, electrical products, and electronic components. The instrument applies a preset AC or DC high voltage to the product under test during the dielectric withstand voltage test, while simultaneously monitoring leakage current changes, in order to determine whether the insulation performance of the product meets safety standard requirements.
Product functions
Leakage current precise detection function
During the test, the leakage current variation of the device under test is monitored in real time, and the test results are automatically judged based on preset limits, enabling rapid identification of insulation performance abnormalities and improving product safety.
Unique sampling design with arbitrarily presettable alarm current value
The instrument adopts a unique high-precision current sampling technology, enabling real-time monitoring of leakage current variations in the product under test during the withstand voltage test. Users can freely set the alarm current threshold according to the safety standards and testing requirements of different products. When the leakage current exceeds the preset value, the device will immediately trigger an alarm and cut off the high-voltage output, effectively improving testing accuracy and safety.
Multiple protection functions
The device is equipped with a variety of built-in safety protection measures, including overcurrent protection, leakage current limit protection, and high-voltage output abnormality protection. When abnormal conditions occur during testing, the instrument responds quickly and automatically cuts off the high-voltage output, preventing equipment damage and safety incidents, providing operators with a safer and more reliable testing environment.
Produktmerkmale
1. Equipped with high-brightness digital tube display, offering wide viewing angles and clear, easy-to-read visibility.
2. Capable of real-time monitoring and display of both leakage current and test voltage during operation.

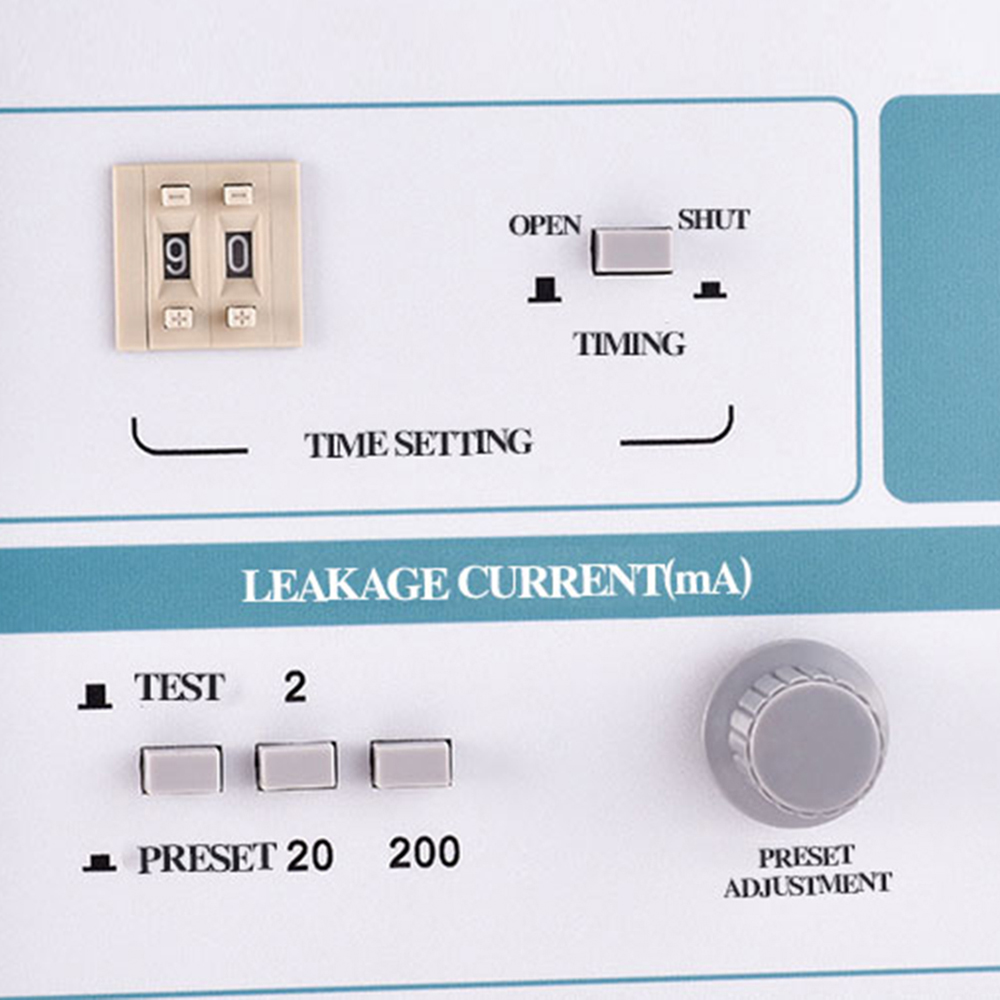

3. Features preset timing with countdown display, automatically shutting off output voltage upon timeout for safe test interruption.
4. Allows arbitrary preset alarm current threshold; triggers audible and visual alarms when leakage current exceeds the set value, prompting test result recording.
5. Delivers 50Hz sine wave output with stable and reliable waveform quality.
6. All critical components utilize imported elements, ensuring high measurement accuracy and extended service life.
7. Designed with a one-piece chassis for compact size, lightweight construction, and excellent portability.
 |  |
Technische Parameter
| Test voltage | AC: 0.5 kV~5kV ±5% | |
| Leakage current setting value | AC: 0.2~200(mA) set arbitrarily | |
| Leakage current setting accuracy | ±5% | |
| Output waveform | 50Hz sinusoidal waveform | |
| Output power | 1000VA | |
| Time control | 1~99(s)±5% manual control∞ arbitrary preset | |
| Power supply voltage | AC: 220V±10% 50Hz±2Hz | |
| Environmental requirements | relative humidity≤ 75%RH | |
| ambient temperature: 0°C~40°C | ||
| Energieverbrauch | static power consumption<30VA | |
