Product Introduction

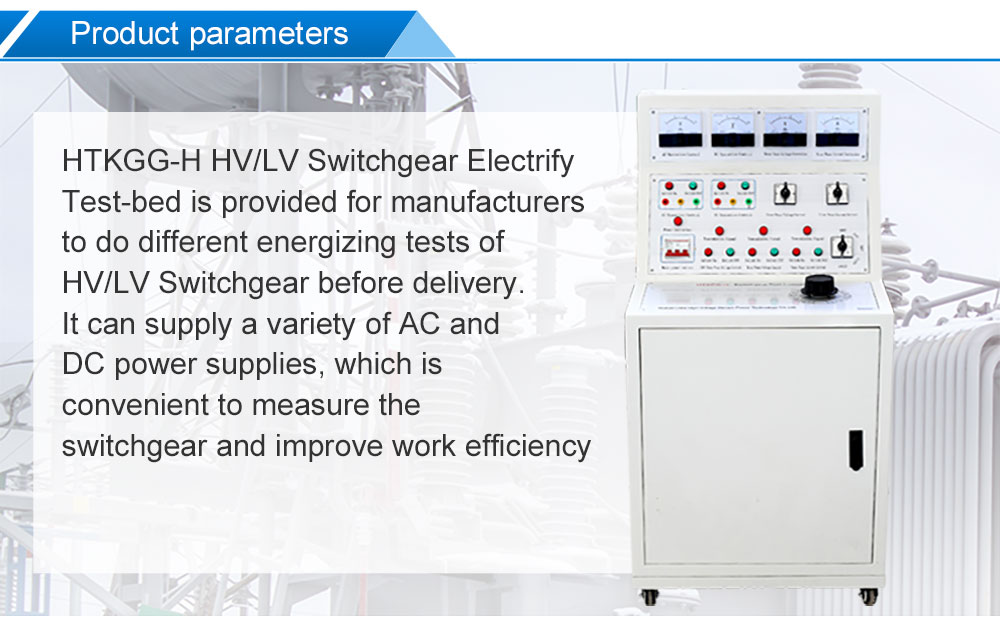

The UHV-430 HV/LV Switchgear Energized Test-Bed is designed for manufacturers to perform various energized tests on high-voltage and low-voltage switchgear prior to delivery. It provides a variety of AC and DC power supplies, facilitating convenient switchgear measurement and improving work efficiency.
Product Characteristics
1. Versatile Power Supply: Provides a variety of AC and DC power outputs to meet different testing requirements.
2. Enhanced Efficiency: Enables convenient measurement of switchgear, significantly improving work efficiency.
Technische Parameter
| Input power | three-phase four-wire AC380V | |
| Ausgangsspannung und -strom | Three-phase AC100V output (fixed value) | 1 group |
| Three-phase AC 0~10A output (100V, adjustable value) | 1 group | |
| AC voltage output AC 0~400V, when 220V, current less than 10A | 1 group | |
| DC operating voltage output DC 0~260V | 1 group | |
| Single-phase AC220V output (fixed value, socket) | 2 groups | |
| Three-phase AC380V output (fixed value, terminal) | 1 group | |
| Fixed DC voltage 24V, 36V, 110V, 220V output | 1 group | |
| Abmessungen | 550×750×800mm3 | |
| Gewicht | 45kg | |
Instructions
1. Connect three-phase four-wire AC380V.
2. Connect output DC300V to the load.
3. Counterclockwise rotate the output adjustment knob to zero.
4. Check whether the wiring is correct.
5. Close power switch.
6. Slowly adjust output adjustment knob, boost voltage to the desired value.
7. Completed test, counterclockwise rotate the output adjustment knob to zero, and then disconnect the power switch, wait for finishing discharge, you can remove the test lead.
